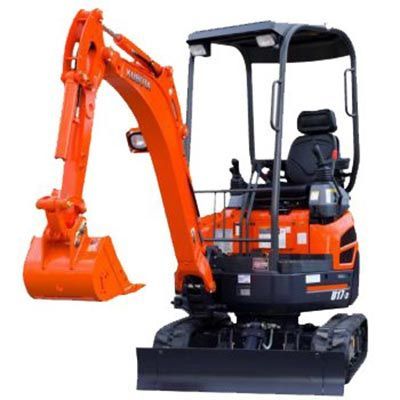

1.7T Kubota Zero Swing Excavator
With the improved pump capacity and extended dozer arm amongst other upgrades, the compact U17 zero swing excavator delivers the power you need, the control you want, and the smooth performance you demand.
FEATURES:
- Engine: Kubota 3 Cylinder D902-E3
- Hydraulic Pumps: Large capacity 45litres/min Variable Displacement pump
- Auxiliary Circuit: 28 Litres/min of flow to power attachments, Bi-directional
- Twin Pattern Selection System: T.P.S.S allows the operator to work between ISO or SAE pattern
- Variable Track Width: The hydraulic track gauge can be adjusted between 990mm and 1,240mm
- Double Flanged Track Rollers: Helps reduce vibration when travelling and improve machine balance, especially when working over the side
- Load Sensing System: The advanced hydraulic system combines flow controlling piston pumps with pressure compensating main control valves
- Wide open covers for easy maintenance: Ground level openings provide easy access to daily maintenance items
- 4 Post steel canopy: Certified ROPS
| ENGINE: | |
| Model | Kubota D902-E3 |
| Cylinders | 3 |
| Horsepower | 17 @ 230 rpm |
| Displacement | 898 cm (3) |
| Fuel Tank Cap | 19 litres |
HYDRAULICS: |
|
| Type | 2 x Variable Displacement and 1 x Gear |
| Flow Rate | 2 x 17.3 L and 1 x 10.4 L |
| Auxiliary Flow | 27.7 L/min |
| Hydraulic Reservoir | 13 L |
TRACKS: |
|
| Material | Rubber (Steel Option Available) |
| Width | 230 mm |
WEIGHT: |
|
| Dry Shipping | 1730 kg |
TRAVEL SPEED: |
|
| Low | 2.5 km/h |
| High | 4.5 km/h |
DIMENSIONS: |
|
| Overall Length | 3545 mm |
| Overall Height | Canopy 2340 mm |
| Ground Clearance | 150 mm |
| Swivelling Speed | 9.1 rpm |
BOOM: |
|
| Maximum Digging Force | Arm 870 Kgf |
| Bucket | 1550 Kgf |
| Maximum Digging Depth | 2310 mm |
| Maximum Digging Height | 3540 mm |
