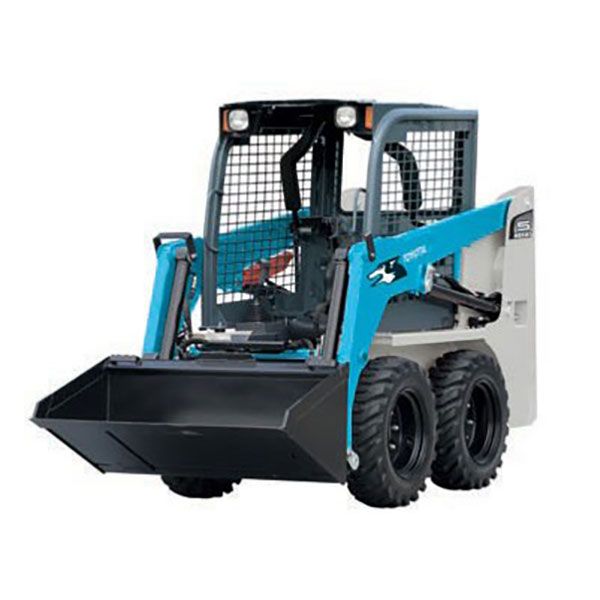

1.7T Toyota Skid Steer Loader
The Toyota 5SDK5 is a compact, four-wheel-drive skid steer loader engineered for material handling, earthmoving, and site levelling in tight, restricted-access applications. Powered by a commercial Toyota diesel engine, it utilizes hydrostatic drive paired with intuitive dual-lever controls to deliver a zero turning radius. The machine is commonly used by landscapers, civil contractors, concreters, plumbers, builders, and hire customers working in backyards, residential pathways, and confined commercial sites.
Features
- Commercial-grade Toyota 3-cylinder diesel engine
- Hydrostatic 4-wheel drive system delivering 360-degree skid-steering on its own footprint
- Intuitive dual mechanical hand-lever and foot-pedal control layout
- ROPS/FOPS certified operator protective canopy with safety interlock bar
- Heavy-duty quick-attach mounting plate compatible with standard compact attachments
- Compact overall machine width under 1,000 mm allowing access through standard gates and narrow side passages
- Front auxiliary hydraulic lines for running powered attachments
- Heavy-duty pneumatic skid steer tyres for traction across varied ground conditions
Uses
- Bulk earthmoving, site cleanups, and soil relocation in confined access areas
- Spreading, grading, and levelling soil, crushed rock, sand, and turf underlay
- Backfilling trenches, service conduits, and retaining walls
- Loading materials into standard box trailers, utes, and low-sided bins
- Operating post hole borers, trenchers, and 4-in-1 buckets on restricted-access jobsites
Specifications
- Operating Weight: 1,170 kg
- Safe Working Load (50% tipping load): 320 kg
- Tipping Load: 640 kg
- Dump Height (to bucket hinge pin): 2,050 mm
- Dump Clearance (bucket dumped at 40°): 1,600 mm
- Engine Model: Toyota 1DZ-II
- Engine Type: 3-cylinder naturally aspirated water-cooled diesel
- Power Output: 17.9 kW (24.0 HP) @ 2,500 rpm
- Fuel Type: Diesel
- Fuel Tank Capacity: 27 L
- Hydraulic Pump Flow: 34.0 L/min
- Hydraulic System Relief Pressure: 14.7 MPa (2,130 psi)
- Travel Speed: 0 – 8.5 km/h
- Overall Length (with standard bucket): 2,590 mm
- Overall Length (without bucket): 1,935 mm
- Overall Width (over tyres): 950 mm
- Overall Width (with 4-in-1 bucket): 1,050 mm
- Overall Height (to top of ROPS canopy): 1,815 mm
- Ground Clearance: 145 mm
Transport Requirements
- Delivery Available
Recommended PPE
- Steel-capped boots
- High-visibility clothing
- Hearing protection
- Eye protection
- Gloves
Optional Attachments
- 4-in-1 hydraulic opening bucket
- Standard general purpose bucket
- Hydraulic post hole borer (auger drive unit)
- Assorted auger drills (150 mm, 200 mm, 300 mm, 450 mm)
- Hydraulic chain trencher
- Pallet forks
- Smudge bar / levelling bar
