150m Cable Rodder Snake Reel | Sunshine Coast

Description

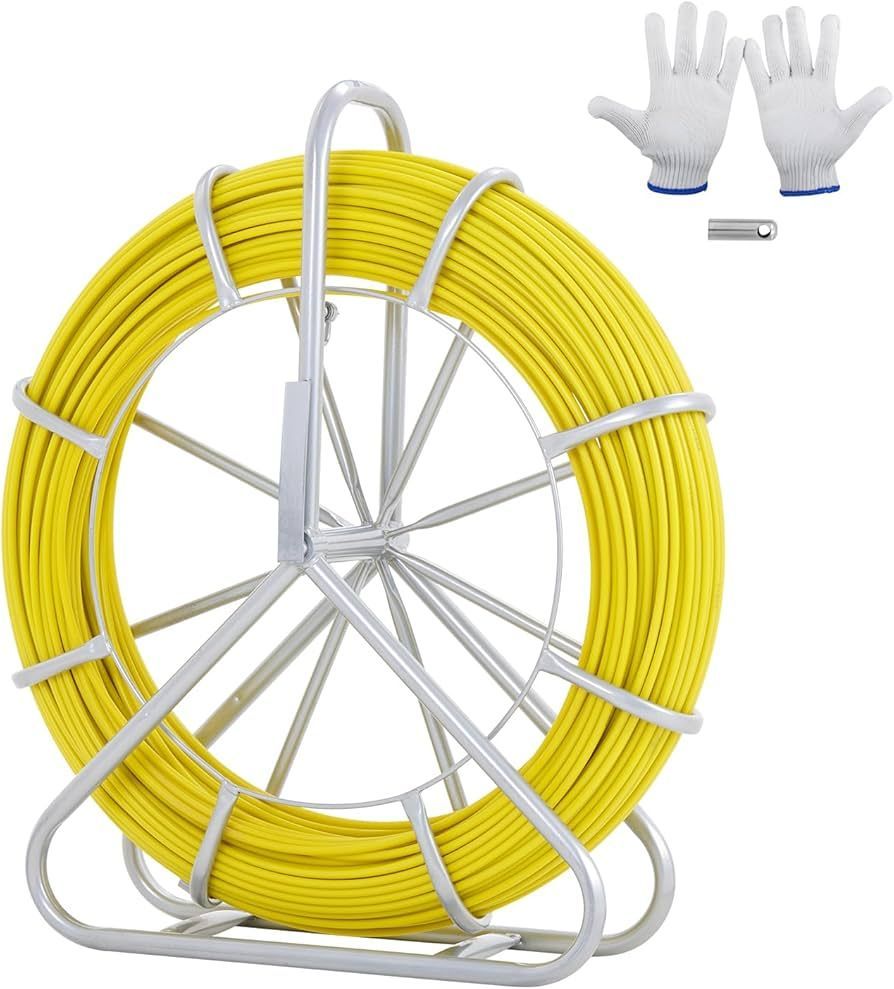

A fibre-glass rodder reel designed for pulling cables through ducts, conduits or under floors. The rod is fed through the conduit and then used to draw in cable or rope.

Features

150 metre rod length for extended runs

8 mm diameter fibreglass rod with non-conductive properties

Aluminium reel with wheeled frame for mobility

Manual payout and rewind system with brake control

steel eyelets on both ends for cable attachment

Non-corrosive frame components and rod material suitable for underground and above-ground use

Uses

Feeding or pulling electrical, data or telecommunication cables through ducts or conduits

Running wires under floors, through walls or in crawl-spaces

Utility or infrastructure work requiring cable installation over long duct runs

Maintenance of existing cable systems where access is limited

Specifications

Rod length: 150 m

Rod diameter: 8 mm

Rod material: fibreglass core with protective outer layer

Minimum bend radius: ~330 mm

Weight: approx. 20-30 kg (model dependent)

Frame type: steel reel with stand and wheels

Transport Requirements

Designed to fit in the tray of a ute or small trailer

Secure the reel, lock the wheels, and ensure the rod is safely restrained during transit

Recommended PPE

Steel-capped boots or sturdy footwear

Gloves for rod handling and cable attachments

Eye protection against debris or rod snapping
