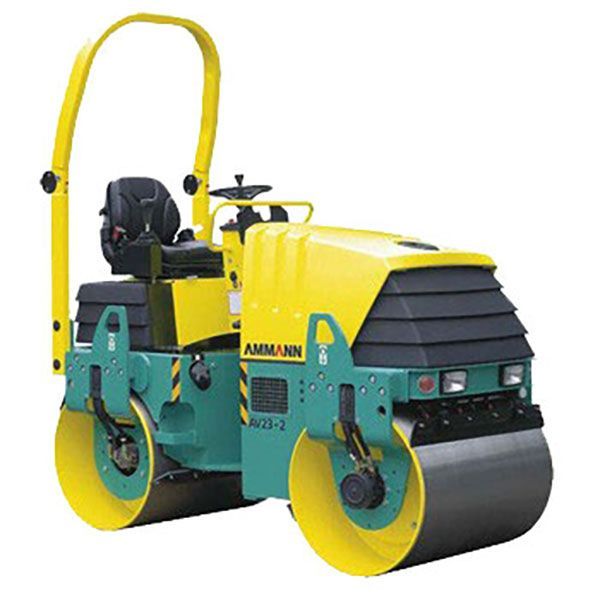

2.6T Twin Drum Roller | Sunshine Coast

BENEFITS:

Lateral clearance right and left

• Ideal engine accessibility
• Teflon articulated joint with lifetime lubrication
• External drain plugs for machine fluids
• Multiple water filtration
• Foldable ROPS for easy transport
• Two scrapers per drum

SMART CONCEPT OF AV1-2 ROLLERS:

The compact AV 1-2 vibrating rollers are designed for use on small to medium construction sites in the fields of road construction, landscape gardening and landscaping. AV 1-2 rollers have proved themselves as very efficient and effective machines for blacktop compaction and for compacting unbonded base layers.

SIDE CLEARANCE:

• AV 1-2 rollers are the only machines in their category to offer
• total side clearance left and right
• Double traction front and rear
• Double vibration front and rear

No wheel supports obstruct compaction work right up to kerbstones and walls. No need for subsequent compaction with smaller machines.

HIGH PERFORMANCE:

Best compaction results achieved through:

• High-torque, water-cooled, three-cylinder Yanmar diesel engine
• 2 working speeds
• 2 frequencies with 2 centrifugal forces
• Single or double vibration with double traction
• Large plastic water tank
• Sprinkling with multiple filtration

EASE TO OPERATE:

High ease of operation through:

• Rubber-mounted operator’s platform
• Clearly arranged operating elements
• 40 mm displacement of front and rear drum
• Tight turning radius
• Compact dimensions
• Smooth starting and reversing

EASE TO MAINTAIN:

Minimum maintenance required:

• All bearings are lifetime lubricated
• Teflon-coated central articulated joint
• Completely unfoldable engine hood
• Direct access to maintenance elements located on one side
• External drain plugs for rapid machine fluids

SAFETY:

AV 1-2 Tandem vibratory rollers are characterised by a high level of safety:

• CE-Package: folding ROPS, emergency stop, comfortable seat with safety belt and seat contact switch
• Comprehensible operating elements
• Unobstructed view of the drums - machine protected against vandalism and theft by locks on:
• Instrument panel cover
• Engine hood
• Diesel tank
• Water tank

ADAPTABLE:

The AV 1-2 series is based on a modular system design. The modular design concept allows

• the adaptation of the machine to specific customer requirements
• optimisation of spare parts management through the standardisation of parts between different AV 1-2 models

TANDEM VERSION:

Standard equipment includes:

• Double traction
• Double vibration
• Pressurised sprinkling system with a large plastic water tank and multiple filtration
• 2 working frequencies with 2 centrifugal forces
• 40 mm drum displacement or drums in line
• 2 scrapers per drum
• Central lifting point for easy transport
• Hours meter and fuel level indicator
• Ammann standard dashboard with extensive functions

The following equipment is available as optional extras for the tandem version:

• CE-Package: folding ROPS, emergency stop, comfortable seat with safety belt and seat contact switch
• Interval sprinkling
• Arm rests

COMBINATION VERSION:

The standard equipment on the combination version is the same as that of the tandem version. In addition to the standard water tank the combination version also has a tank with anti-caking agent which is sprinkled under pressure onto the tyres. The anti-caking agent sprinkler is activated by a manual switch. The AV 16-2 K is available as a combination roller.
