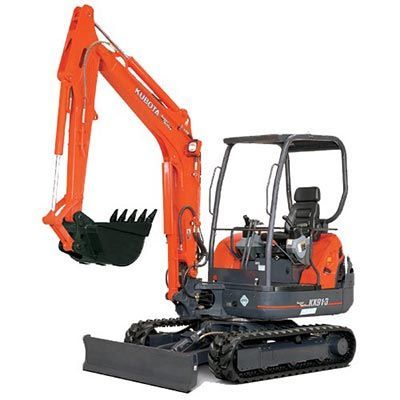

3.3T KX91-3 Kubota Excavator
The KX91-3S offers big excavator performance in a compact unit.
FEATURES:
- Kubota Engine: Performance matched to each excavator, the engine provides dependable power at low sound levels with the highest fuel efficiency while meeting emissions standards
- Hydraulic Pumps: Large capacity Variable Displacement pump
- Auxiliary Circuit: 62.3 Litres of flow to power attachments, Bi-directional
- Twin Pattern Selection System: T.P.S.S allows the operator to work between ISO or SAE pattern
- Double Flanged Track Rollers: Double flanged track rollers reduce vibration when travelling and improve machine balance, especially when working over the side
- Automatic Swing parking brake: The swivel negative brake automatically locks the upper structure in place when the engine is off
- Wide open covers for easy maintenance: Ground level openings provide easy access to daily maintenance items
- 4 Post steel canopy: Certified ROPS
FEATURES:
Factory fitted cabin with heater
Factory fitted Travel Arm
Factory fitted Working light kit
ENGINE: | |
Model | Kubota D1703-M-E3 |
Cylinders | 3 |
Horsepower | 29.6 @ 2250 rpm |
Displacement | 1647 cm (3) |
Fuel Tank Cap | 50 litres |
HYDRAULICS: |
|
Type | 2 x Variable Displacement and 1 x Gear |
Flow Rate | 2 x 41.4 L and 1 x 20.9 L |
Auxiliary Flow | 63.0 L |
Hydraulic Reservoir | 55 L |
TRACKS: |
|
Material | Rubber and Steel |
Width | 300 mm |
WEIGHT: |
|
Dry Shipping | 3225 kg (Rubber/Canopy) |
TRAVEL SPEED: |
|
Low | 3.1 km/h |
High | 4.8 km/h |
DIMENSIONS: |
|
Overall Length | 4760 mm |
Overall Height | Canopy 2440 mm |
Ground Clearance | 1550 mm |
Swivelling Speed | 9.4 rpm |
BOOM: |
|
Maximum Digging Force | Arm 1629 Kgf |
Bucket | 2785 Kgf |
Maximum Digging Depth | 3186 mm |
Maximum Digging Height | 4960 mm |
