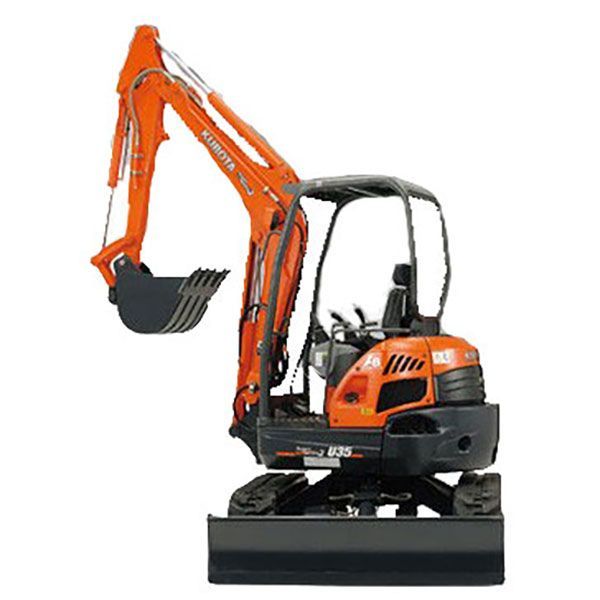

3.5T U35-3S2 Kubota Excavator
The KX91-3S offers big excavator performance in a compact unit
| SPECIFICATIONS: | |
| Model | Kubota U35-3S2 |
| Type of ROPS / FOPS | Canopy / Cab |
| Type of Tracks | Steel / Rubber |
| Hydraulic Oil (reservoir / system) | 36 L / 55 L |
| Fuel Reservoir | 40 L |
ENGINE: |
|
| Output (SAEJ 1995 gross) | 29.6 HP (22.1 kW) / 2250 rpm |
| Output (SAEJ 1349 net) | 28.3 HP (21.1 kW) / 2250 rpm |
| Displacement | 1647 cc |
DIMENSIONS: |
|
| Overall Length | 4695 mm |
| Overall Height | 2440 mm |
| Overall Width | 1700 mm |
| Min. Ground Clearance | 290 mm |
HYDRAULIC SYSTEM: |
|
| Pump Capacity | 39.1l x 2min / 20.7l x 1 min |
| Auxiliary Hydraulic Flow | 60 l/min |
| Max. Breakout Force (bucket / Arm) | 2866 kgf / 1915 kgf |
DRIVE SYSTEM: |
|
| Travel Speed (High / Low) | 3.0 km/h / 4.6 km/h |
| Max. Traction Force (low speed) | 2766 kgf |
| Tumbler Distance | 1665 mm |
| Crawler Length | 2100 mm |
| Shoe Width | 300 mm |
| Ground Contact Pressure Canopy (Rubber / Steel) | 0.33 kgf/cm2 / 0.34 kgf/cm2 |
| Ground Contact Pressure Cab (Rubber / Steel) | 0.34 kgf/cm2 / 0.35 kgf/cm2 |
SWING SYSTEM: |
|
| Unit Swing Speed | 8.9 rpm |
| Boom Swing Angle (Left / Right) | 70 ° / 50 ° |
BLADE: |
|
| Dimensions Width | 1700 mm |
| Dimensions Height | 335 mm |
| Max. lift above ground | 370 mm |
| Max. drop below ground | 370 mm |
OPERATING WEIGHT (INCLUDING OPERATOR'S WEIGHT 80KG): |
|
| Canopy (Rubber / Steel) | 3640 kg / 3735 kg |
| Cab (Rubber / Steel) | 3750 kg / 3845 kg |
