3" Submersible Pump (415V) | Sunshine Coast

The Atlas Copco D50H is a 3" submersible pump designed for dewatering applications on construction, civil and industrial sites. It is built to handle clean and lightly contaminated water and is suitable for continuous operation in pits, trenches and sumps.

Features

• 415V three-phase electric motor
• Submersible design for operation directly in water
• Compact body for use in confined pits and trenches
• Heavy-duty casing suitable for site conditions
• Top discharge outlet for hose connection
• Integrated motor protection (model dependent)

Uses

• Dewatering trenches, footings and excavations
• Pumping out pits, sumps and tanks
• Stormwater and site water management
• General construction and civil dewatering tasks

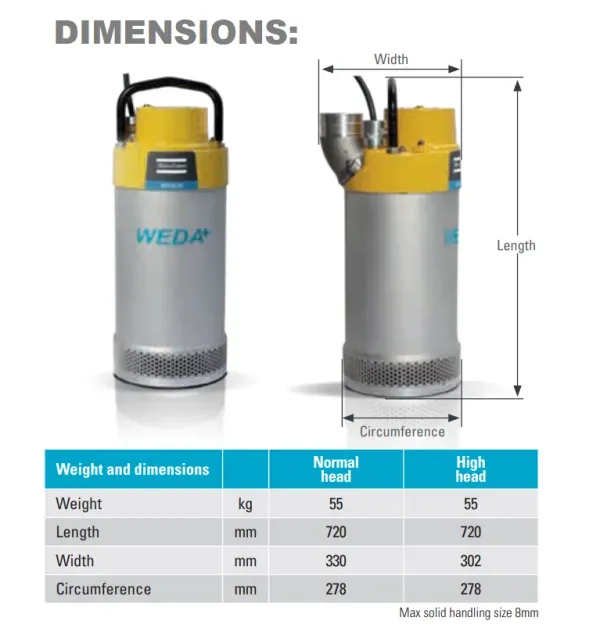

Specifications

• Pump outlet size: 3" (75 mm)
• Power supply: 415V three-phase
• Motor power: approx. 3.7–5.5 kW (model configuration dependent)
• Maximum flow rate: approx. 800–1,200 L/min (depending on head)
• Maximum head: approx. 20–30 m
• Solid handling: suitable for small debris and light slurry
• Overall height: approx. 600–700 mm
• Diameter: approx. 250–300 mm
• Weight: approx. 35–45 kg

Transport Requirements

• Suitable for transport in a ute, van or small trailer
• Ensure pump is drained, secured and protected during transit
• Use appropriate lifting technique or assistance when moving

Recommended PPE

• Steel-capped boots
• Gloves when handling pump and hoses
• Eye protection when connecting hoses or operating near water discharge
• Hearing protection when used in conjunction with generators or other equipment

Downloadable Documents
