6m Track Mounted Rough Terrain Scissor Lift

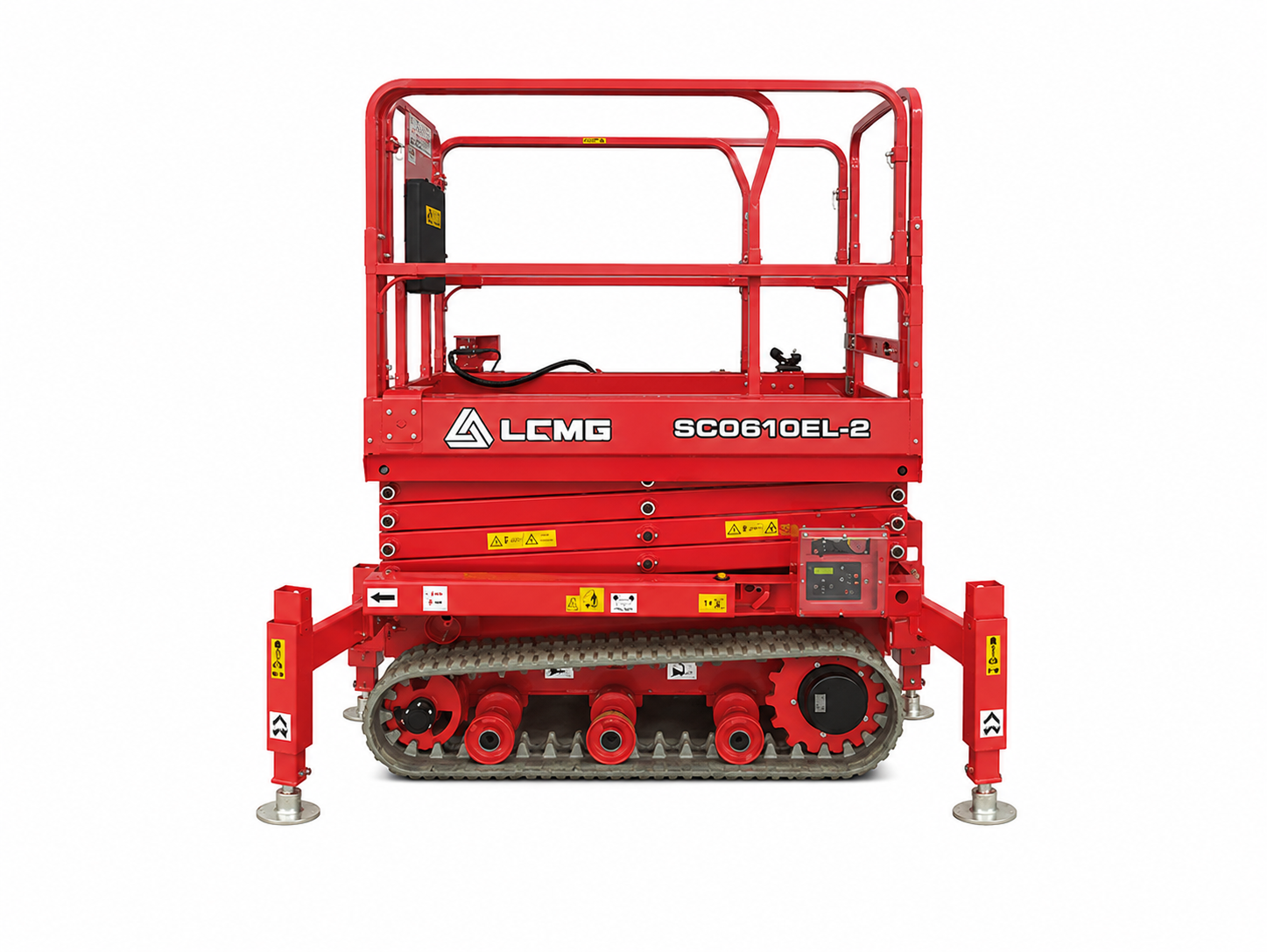

The LGMG SC0610E-2 is a compact electric scissor lift designed for indoor and outdoor elevated access applications. Its narrow width allows access through restricted areas while the rough terrain capability and self-levelling function provide stable operation on uneven ground.


Features


  • Electric drive system for quiet, zero-emission operation
  • Narrow machine width for access through confined spaces and gateways
  • Self-levelling function for operation on uneven terrain
  • Rough terrain capability for outdoor construction and maintenance work
  • Extendable platform deck for increased working reach
  • Proportional controls for smooth operation
  • In-situ steering for excellent manoeuvrability in tight spaces
  • Non-marking tracks suitable for indoor surfaces
  • Can be Delivered or Trailer Mounted for versatility


Uses


  • Construction and maintenance work requiring elevated access
  • Installation of electrical, plumbing and mechanical services
  • Warehouse and facility maintenance
  • Indoor and outdoor access applications
  • Work in confined areas with narrow access points
  • Elevated work on uneven or rough terrain surfaces


Specifications


  • Maximum working height: 8.8 m (indoor) / 7.5 m (outdoor)
  • Maximum platform height: 6.8 m (indoor) / 5.5 m (outdoor)
  • Platform length: 1.895 m
  • Platform width: 0.73 m
  • Overall length: 2.400 m
  • Overall width: 0.99 m
  • Overall height (guardrails up): 2.192 m
  • Extension deck length: 0.9 m
  • Wheelbase: 0.95 m
  • Ground clearance: 115 mm
  • Platform capacity: 250 kg
  • Platform extension capacity: 120 kg
  • Maximum occupants: 2 (indoor) / 1 (outdoor)
  • Gradeability: 30%
  • Turning radius: In-situ steering
  • Raise / Lower speed: 36 sec / 36 sec
  • Power source: 24V (4 × 6V), 200Ah AGM batteries
  • Hydraulic oil capacity: 5.5 L
  • Machine weight: 1,600 kg


Transport Requirements


  • Trailer Mounted – Vehicle with a 3T towing capacity required or Delivery Available


Recommended PPE


  • Safety helmet
  • Steel-capped boots
  • Gloves
  • Safety harness and lanyard where required by site-specific risk assessment


Optional Attachments


  • Harness and lanyard kit


Downloadable Documents


  • Operator's Manual


  • Spec Sheet
