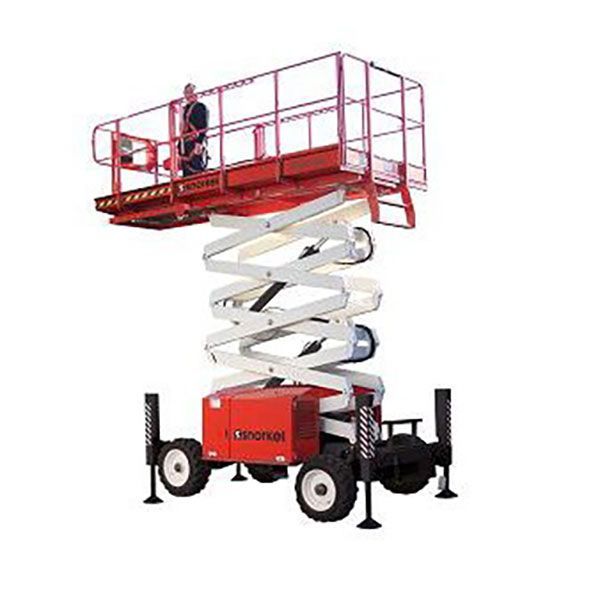

8.5M Diesel All Terrain Scissor Lift
FEATURES:
- 1.2m deck extension
- 4 wheel drive
- 4 hydraulic outriggers with automatic levelling
- Proportional joystick control
- Poly filled lug tyres
- Articulating axle
- Horn
- Drive motion alarm
- Lower warning alarm
- Fold-down guardrails
- CE approved
| SPECIFICATIONS: | |
| Platform Capacity (SWL) | 580kg |
| Max. drive height | 8.28m |
| Max. drive speed (stowed) | 4.5km/h |
| Max. drive speed (elevated) | 0.9km/h |
| Raise/lower time | 26/30 seconds |
| Gradeability | 35% |
| Max. outrigger levelling, front to rear | 6° |
| Max. outrigger levelling, side to side | 10° |
| Inside turning radius | 2.83m |
| Outside turning radius | 4.60m |
| Tyres | 27 x 10.5 - 15 poly filled loader lug |
| Controls | proportional joystick |
| Drive system | 4 wheel drive |
| Power source | Kubota D-902 water-cooled diesel 22.5h |
| Gross weight | 2,800kg |
DIMENSIONS: |
|
| Max. working height | 10.3m |
| Max platform height (A) | 8.28m |
| Platform size (stowed) | 2.74m x 1.65m |
| Platform size (extended) | 4.0m x 1.65m |
| Deck extension | 1.2m |
| Overall Width (D) | 1.77m |
| Overall Length (C) | 3.36m |
| Overall Height (B) | 2.56m |
| Min. height (guardrails folded) | 1.75m |
| Ground clearance | 350mm |
