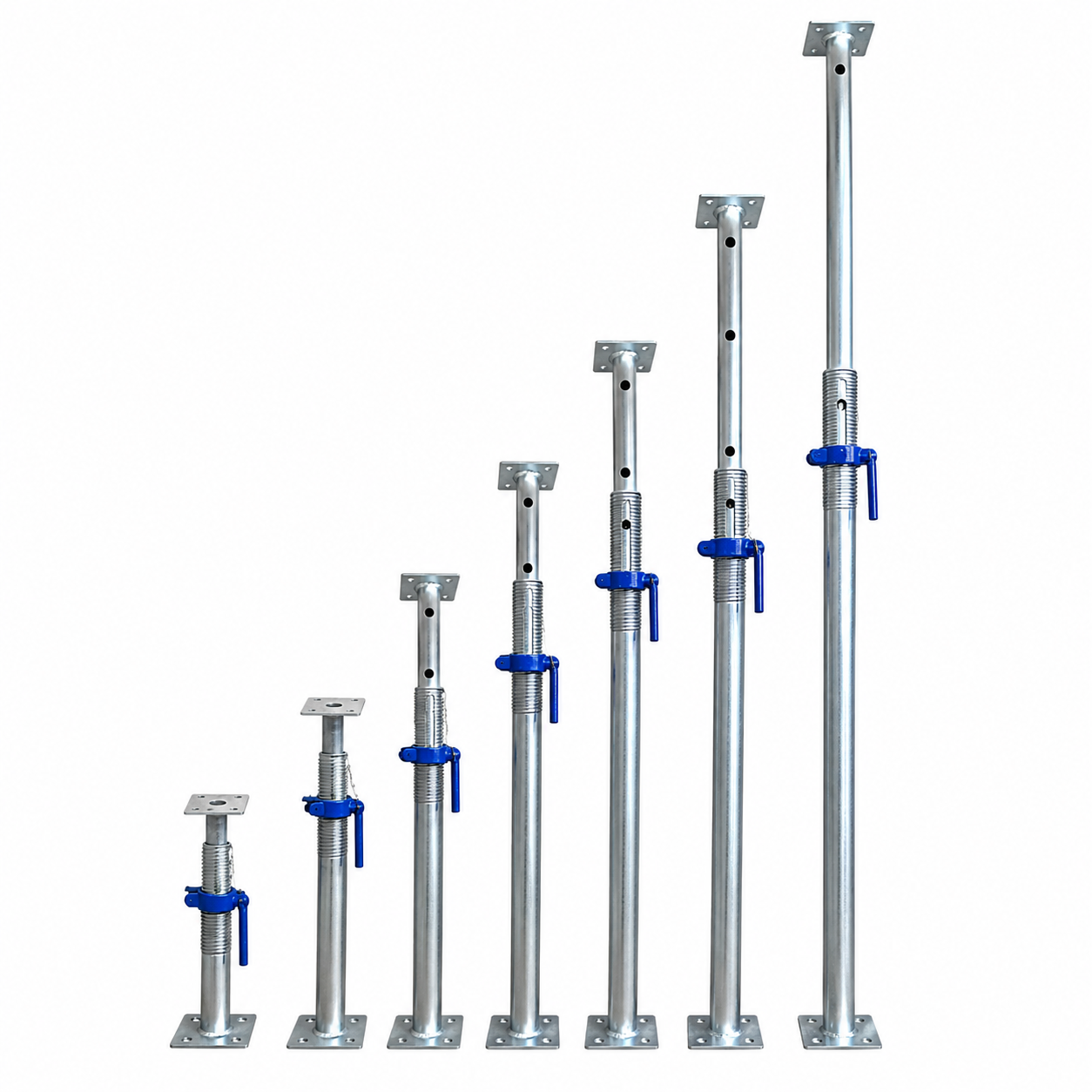

Acrow Props
Acrow props are adjustable steel support props used to provide temporary vertical support during construction, renovation and maintenance projects. They are commonly used to support formwork, ceilings, beams, lintels and structural elements while building or repair work is being carried out.
Features
- Adjustable steel prop design for varying support heights
- Threaded adjustment mechanism for fine height adjustment
- Captive pin adjustment system
- Galvanised steel construction
- Suitable for temporary vertical support applications
- Available in multiple sizes to suit different support heights
Uses
- Temporary support of beams and lintels during structural alterations
- Supporting formwork for concrete construction
- Ceiling and roof support during renovation work
- Temporary shoring and structural support applications
- General building and maintenance projects requiring adjustable vertical support
Specifications
- Size 000: 0.45 m closed / 0.70 m extended
- Size 00: 0.69 m closed / 1.16 m extended
- Size 0: 1.07 m closed / 1.82 m extended
- Size 1: 1.60 m closed / 2.80 m extended
- Size 2: 1.98 m closed / 3.35 m extended
- Size 3: 2.59 m closed / 3.95 m extended
- Size 4: 3.20 m closed / 4.87 m extended
- Construction: galvanised steel
- Adjustment: threaded collar with captive pin locking system
Transport Requirements
- Suitable for transport in a ute, trailer or truck depending on quantity and prop size
- Ensure props are securely restrained during transport
Recommended PPE
- Steel-capped boots
- Gloves
- Safety helmet
- Eye protection when installing or removing props
