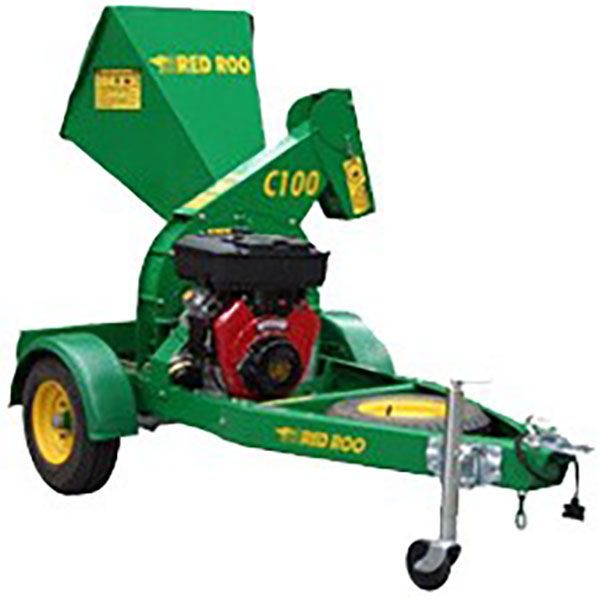

Chippers for Hire
FEATURES:
- Directional control on fixed discharge chute
- Spare tyre
- Quick release tow coupling
- Rotor molded mudguards
- Disc locking pin
- Sandblasted & powder coated finish (green)
PPE REQUIREMENTS:
Earmuffs
Gloves
Goggles
TRANSPORT REQUIREMENTS:
Towbar
| ENGINE: | |
| Engine Type | 16HP (12KW) V Twin OHV Briggs & Stratton Vanguard Engine |
| Starting System | Manual Start |
| Cooling System | Air Cooled |
| Air Cleaner | Dual Element with Pre-Cleaner |
| Engine Drive | 3B Section Belts With Over Center Cam |
CHIPPER: |
|
| Capacity | 100mm (4') |
| Shaft | 35mm at centre hub |
| Knives | 2 knives of hardened tool steel, reversable, interchangeable & resharpenable 7 1/4' long x 4' wide x 3/8' thick. Delivers full width cut across the anvil. |
| Chip Size | 19mm (3/4') to 25mm (1') |
| Anvil | 4 sided, adjustable, replaceable and resharpenable |
| Disc Speed | 1800 rpm |
| Feed Rate | Intermittent |
| Infeed Throat Opening | 150mm (6') x 150mm (6') |
CHASSIS: |
|
| Axle | > Red Roo Flexride |
| Tyres | 5.0 x 10 x 6ply |
| Tow Hitch | 50mm (2') ball coupling & safety chains |
| Jockey Wheel | Double pin spring loaded |
| Weight | 350 kg |
