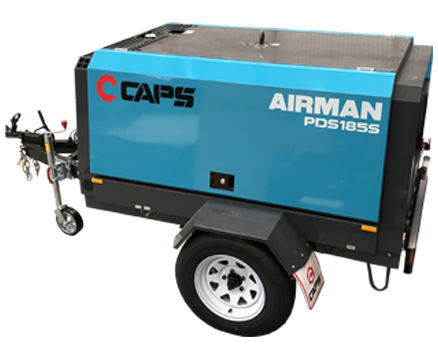

185cfm Towable Compressor
The Airman PDS185S is a diesel-powered towable air compressor designed to supply compressed air for construction, demolition and industrial applications. The trailer-mounted design allows easy transport between job sites while providing continuous air supply for pneumatic equipment.
Features
- Diesel-powered rotary screw compressor
- Towable trailer-mounted design
- Heavy-duty canopy for weather and site protection
- Multiple air outlets for operating pneumatic tools
- Electric start with battery isolation system
- Large fuel tank for extended operation
Uses
- Operating jackhammers and pneumatic breakers
- Sandblasting and abrasive blasting applications
- Running air tools and pneumatic equipment
- Construction, roadworks and civil projects
- Pipeline and industrial maintenance work
Specifications
- Free air delivery: 185 CFM
- Working pressure: 100 PSI
- Engine: Isuzu diesel engine
- Fuel type: diesel
- Compressor type: rotary screw
- Fuel tank capacity: approx. 70 L
- Operating weight: approx. 750 kg
- Overall length: approx. 3,300 mm
- Overall width: approx. 1,450 mm
- Overall height: approx. 1,300 mm
Transport Requirements
- Trailer Mounted – Vehicle with a 3T towing capacity required
- Delivery Available
Recommended PPE
- Steel-capped boots
- Hearing protection
- Gloves when handling hoses and fittings
Optional Attachments
- Air hoses
- Jackhammers and pneumatic breakers
- Rock drills
- Air tools
Downloadable Documents
| SPECIFICATIONS: | |
| Hz | 50 |

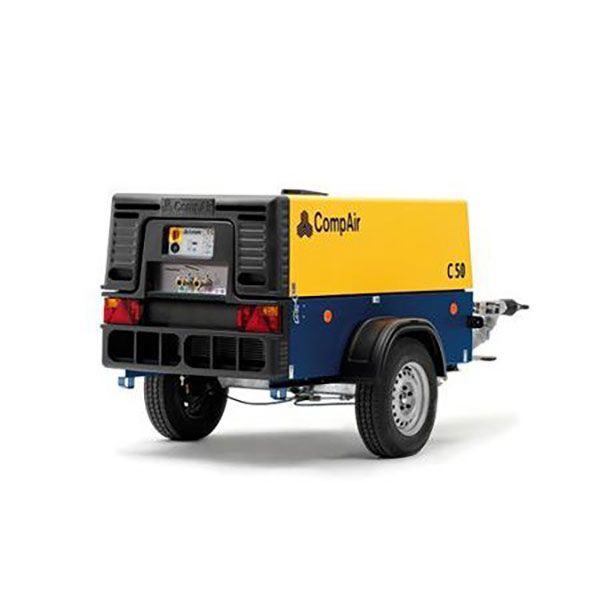

| Model | C50 (C-Generator Optional) (DLT0408) |
| Series | C Series |
| Description | Portable Compressors (C Series - 3.5 to 7.6 m³/min) |
| Gas Compressed | Air |
| Output Free Air Delivery at Rated Pressure (m³/min) | 5 |
| Minimum Operating Pressure (Bar g) | 5 |
| Max or Rated Operating Pressure (Bar g) | 7 to 8 |
| Maximum Operating Pressure (Bar g) | 8 |
| Motor Output (kW) | 35.5 |
| Noise Level (db) | 98 |
| Length (mm) | 3065 |
| Width (mm) | 1490 |
| Height (mm) | 1327 |
| Compressed Air Outlets (inch) | 2 x 3/4' |
| Off Load Speed (rpm) | 1600 |
| Full Load Speed (rpm) | 2800 |
| Oil Capacity (l) | 9 |
| Weight: Straight towbar, braked (kg) | 835 (920 for G version) |
| Weight: Adjustable towbar, braked (kg) | 866 (955 for G version) |
| Fuel Tank Capacity (l) | 60 |
| Wheel Track (mm) | 1300 |
| Ground Clearance (mm) | 200 |
| Tyre Size (mm) | 155 SR 13 |
| Canopy Length (mm) | 1775 |
| Engine Type | Yanmar 4TNV88BKCP |
| Cooling System | Water Cooled - 65(l) |
| At Rated Operating Pressure (Bar g) | 85 L7 |
| Output Free Air Delivery (m³/min) | 5 |
