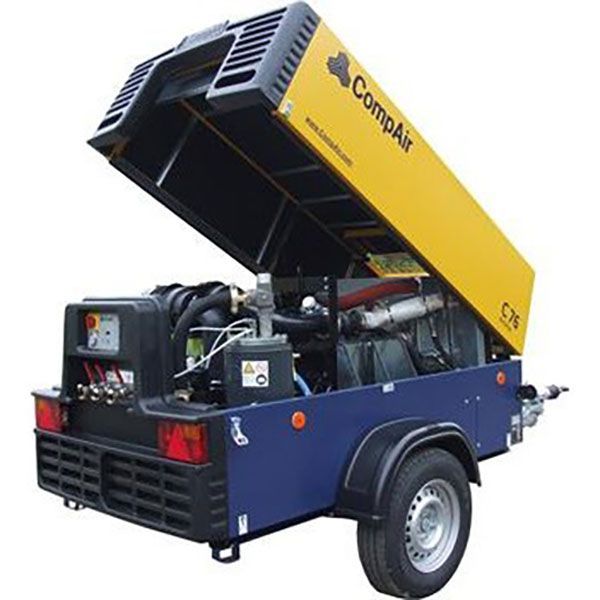

CompAir C76 260CFM Portable Compressor
FEATURES:
The latest CompAir Range of Portable Compressor incorporates the very latest technological advances and manufacturing processes to provide users with a portable supply of economic and reliable compressed air.
Dimensions shown are braked with straight towbar
Power sound level (dB(A)) acc. to 2000/14/EC 2) (Legal limiting values of EC directive from 01.2006)
Inlet pressure = 1 bar unless otherwise stated
| SPECIFICATIONS: | |
| Hz | 50 |
| Model | C76 (G-Generator Optional) (DLT0704) |
| Series | C Series |
| Description | Portable Compressors (C Series - 3.5 to 7.6 m³/min) |
| Gas Compressed | Air |
| Output Free Air Delivery at Rated Pressure (m³/min) | 7.6 |
| Minimum Operating Pressure (Bar g) | 5 |
| Max or Rated Operating Pressure (Bar g) | 7 to 8 |
| Maximum Operating Pressure (Bar g) | 8 |
| Motor Output (kW) | 63 |
| Noise Level (db) | 99 |
| Length (mm) | 3620 |
| Width (mm) | 1700 |
| Height (mm) | 1440 |
| Compressed Air Outlets (inch) | 3 x 3/4' + 1 x 1/2' |
| Off Load Speed (rpm) | 1600 |
| Full Load Speed (rpm) | 2600 |
| Oil Capacity (l) | 8 |
| Weight: Straight towbar, braked (kg) | 1160 |
| Weight: Adjustable towbar, braked (kg) | 1200 |
| Fuel Tank Capacity (l) | 140 |
| Wheel Track (mm) | 1475 |
| Ground Clearance (mm) | 295 |
| Canopy Length (mm) | 2205 |
| Engine Type | Cummins B3.5T AA |
| Cooling System | Water Cooled |
| At Rated Operating Pressure (Bar g) | 7 |
| Output Free Air Delivery (m³/min) | 7.6 |
