Concrete Core Drill | Sunshine Coast

Description

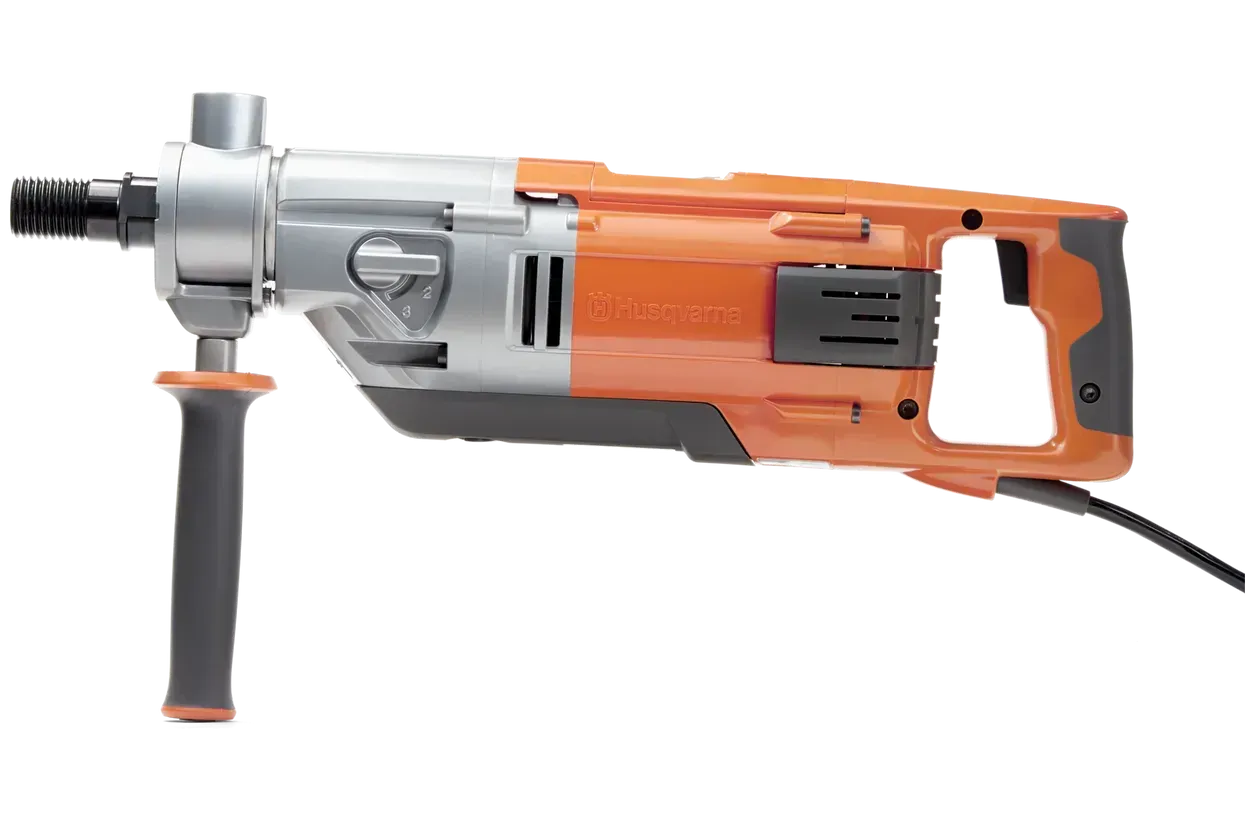

The Husqvarna DM 220 is a single-phase electric core drill designed for drilling holes in concrete, brick and masonry. It can be operated handheld or mounted to a drill stand for improved accuracy and larger diameter drilling.

Features

• 230V electric motor suitable for standard site power supply

• Two-speed gearbox for improved control across different bit sizes

• Soft-start function to reduce load on start-up

• Electronic overload protection for motor safety

• Ergonomic handle design for handheld operation

• Compatible with drill stands for vertical or angled drilling

• Water connection for wet core drilling applications

Uses

• Drilling penetrations for plumbing and electrical services

• Concrete coring for HVAC, pipework and ducting

• Creating openings in brick and masonry walls

• Core drilling in slabs, floors and structural concrete

• Residential and commercial construction applications

Specifications

• Motor power: approximately 1,850 W

• Voltage: 230 V single phase

• Maximum core bit diameter (handheld): up to 150 mm

• Maximum core bit diameter (with stand): up to 150 mm (larger diameters depending on stand configuration)

• Two-speed gearbox: approx. 580 rpm / 1,400 rpm (no load)

• Spindle thread: 1¼" UNC and G ½" connection

• Weight: approximately 7 kg

Transport Requirements

• Suitable for transport in a ute, van or tool storage compartment

• Store in protective case and secure during transit

• Remove core bit before transport

Recommended PPE

• Steel-capped boots

• Safety glasses or face shield

• Hearing protection

• Gloves

Downloadable Documents

• Operator's Manual

• Safe Operating Procedure
