Dual Grade Rotating Laser Level | Sunshine Coast

Description

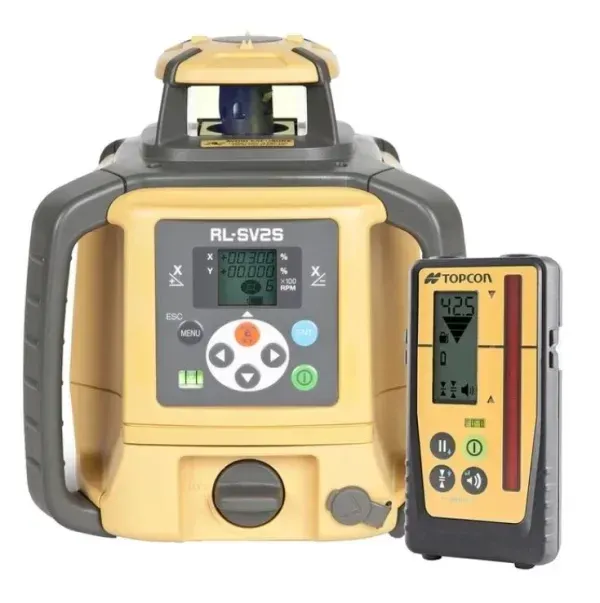

The Topcon RL-SV2S is a dual-grade rotary laser designed for accurate levelling and slope work in construction and civil applications. Supplied with the LS-100D laser receiver, it provides long-range detection for outdoor set-out and grading tasks.

Features

• Dual grade capability for setting slope on one or both axes

• Self-levelling horizontal and vertical operation

• 360° rotating laser beam for full site coverage

• Long working range when paired with LS-100D receiver

• Digital grade entry for precise slope settings

• Weather-resistant housing suitable for site conditions

• Remote control compatibility (model dependent)

Uses

• Setting grades for drainage, driveways and landscaping

• Establishing fall for plumbing and civil works

• Slab preparation and concrete formwork alignment

• Roadworks and general construction level control

• Vertical alignment tasks such as wall and fence line set-out

Specifications

• Self-levelling range: approximately ±5°

• Grade range: dual slope capability (up to approx. ±15% depending on axis)

• Accuracy: approximately ±2 mm over 30 m

• Working range: up to 800 m diameter with LS-100D receiver

• Rotation speed: multiple selectable speeds

• Power supply: rechargeable battery pack or alkaline batteries

• Environmental rating: weather and dust resistant construction

Transport Requirements

• Supplied in protective carry case

• Suitable for transport in ute, van or tool storage compartment

• Ensure unit is secured and receiver stored safely during transit

Recommended PPE

• Steel-capped boots on active construction sites

• High-visibility clothing

• Eye protection in dusty environments

Downloadable Documents

• Operator's Manual

• Safe Operating Procedure
