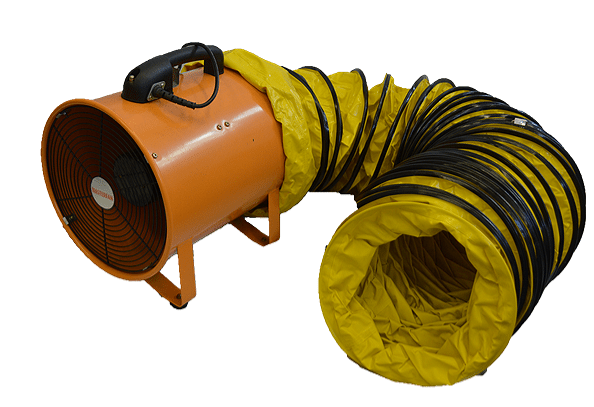

Extraction Fan 12"
The 12" Portable Exhaust Fan is designed to provide ventilation and air movement in confined or enclosed work areas. Supplied with flexible ducting, it can be used to extract stale air, fumes, dust and heat, or introduce fresh air into workspaces where ventilation is limited.
Features
- Portable design for easy transport and setup
- High airflow capacity for effective ventilation
- Supplied with flexible ducting
- Durable steel housing suitable for site use
- Carry handle for improved portability
- Suitable for extraction or fresh air supply applications
Uses
- Ventilating confined spaces during maintenance and construction work
- Extracting fumes, dust and airborne contaminants
- Providing fresh air circulation in enclosed work areas
- Assisting with drying and moisture control applications
- Improving airflow in tanks, pits, crawl spaces and service areas
Specifications
- Fan diameter: 300 mm (12")
- Power supply: 240 V single phase
- Motor power: 250 W
- Airflow capacity: 65 m³/min
- Flexible duct length: 5 m
- Fan speed: 2,800 rpm
- Weight: 12.5 kg
- Overall length: 390 mm
- Overall width: 330 mm
- Overall height: 430 mm
Transport Requirements
- Suitable for transport in a ute, van or small trailer
- Secure fan and ducting during transport to prevent damage
Recommended PPE
- Steel-capped boots
- Gloves when handling ducting and equipment
- Eye protection when working in dusty environments
- Respiratory protection where airborne contaminants are present
Optional Attachments
- Additional flexible ducting
- Extension leads
- RCD safety leads
