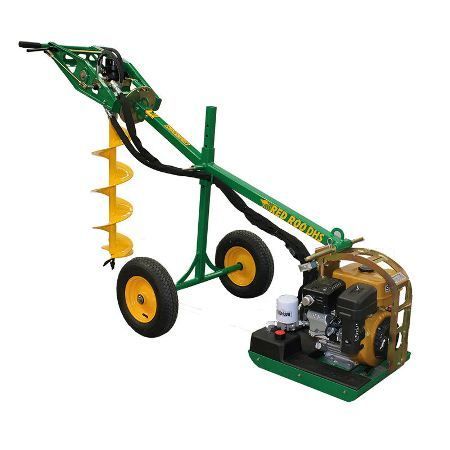

One-Man Cantilever Hydraulic Post Hole Digger | Sunshine Coast

Description

A single-person hydraulic post hole digger designed for fence installations and ground-works where hole digging is required. It is powered by a petrol engine with hydraulic drive, and equipped for use with a range of auger diameters.

Features

• Fully hydraulic drive system (no belts or shear pins) for durability and low maintenance

• Dual rotation auger capability allowing standard and reverse operation to assist with auger withdrawal

• Compatible with augers in the diameter range of 100 mm (4″) up to 350 mm (14″)

• Standard auger length around 900 mm (35″) with optional extensions for deeper holes (500 mm / 20″)

• Compact footprint and disassembly features for easier transport to site

Uses

• Digging holes for fence posts, signage, landscaping posts or retainers

• Ground-works in maintenance or construction settings where precise hole diameters are required

• Hire use on site where one-operator operation and portability are beneficial

Specifications

• Engine: approximately 9 hp (6.75 kW) petrol engine (Honda GX270)

• Assembled dimensions: length ~2,500 mm, width ~810 mm, height ~1,550 mm

• Weight: approximately 80 kg (without auger)

• Auger diameter range: 100 mm to 350 mm

• Standard auger length: 900 mm (35″)

• Working hydraulic pressure: around 150 bar (2,200 psi)

Transport Requirements

• the unit can be transported by a ute or small trailer

Recommended PPE

• Steel-capped boots

• Gloves

• Eye protection

• Hearing protection
