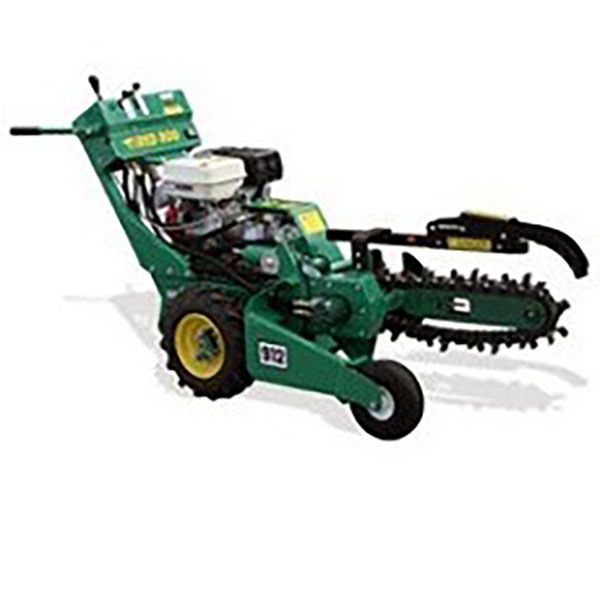

Trenchers
FEATURES:
- Ideal for irrigation installation, lawn sprinkler systems, communication cables
- Self Propelled, forward, neutral and reverse
- All Hydraulic for greater reliability low maintenance
- Compact and light weight for easy operation
- Safety clutch stops wheels and chain immediately
- Chain reverse to dislodge rocks and debris
- Wheel locks allow unit to be freewheeled
| ENGINE SPECIFICATIONS: | |
| Model | Honda 9HP |
| Ground Speed Forward | 40mpm (132fpm) |
| Ground Speed Reverse | 17mpm (58fpm) |
| Digging Chain Speed | 70mpm (227fpm) |
| Weight | 280kgs (620lbs) |
GENERAL SPECIFICATIONS: |
|
| Trench Depth | 300mm - 450mm (12' - 18') |
| Trench Width | 100mm (4') |
| Boom Travel Up | 5 ¼ |
| Boom Travel Down | 59 ¼ |
| Front Wheel to Handlebar | 889mm |
| Boom End to Handlebar | 2060mm (81') |
| Wheel Width | 711mm (28') |
| Handlebar Width | 736mm (29') |
| Total Height | 110mm (43') |
| Wheel Base | 82mm (3.25') |
