Vinyl Floor Roller 34kg

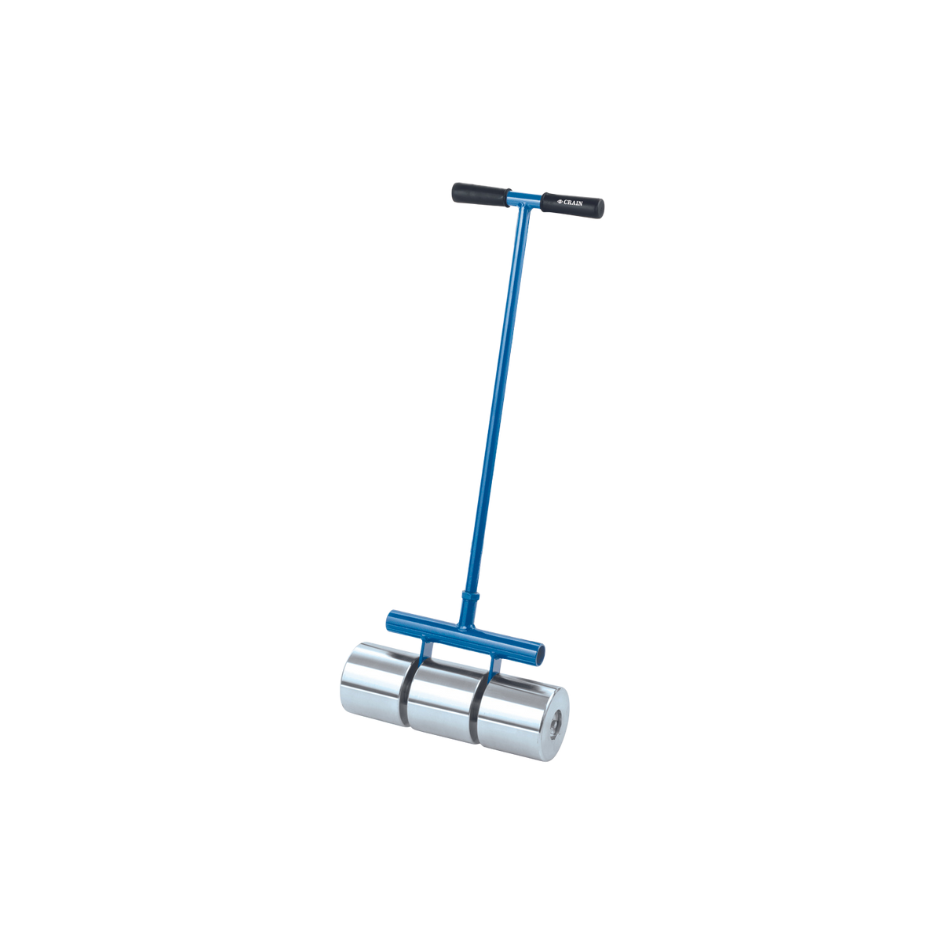

The Crain 75 lb Vinyl Roller (Crain 034) is a segmented, cast-iron hand roller designed to press vinyl floor coverings into adhesive during installation. It features three independent floating roller segments that conform to subfloor contours to distribute weight evenly and remove air bubbles. The tool is commonly used on residential, commercial, and healthcare flooring projects for sheet vinyl, vinyl composition tile (VCT), and luxury vinyl plank (LVP) installations.

Features

• Three independent floating cast-iron roller segments for uniform pressure across uneven subfloors
• Zinc-plated, smooth-finished rollers to prevent marking or damaging floor coverings
• Inset axle design to allow rolling flush against walls, skirting boards, and toe-kicks
• Detachable handle mechanism for compact storage and easier vehicle loading
• Recessed wheel guards to protect surrounding finishes during operation
• Steel transport axle and wheels for protected rolling across job sites when not in use

Uses

• Rolling sheet vinyl and linoleum installations
• Pressing vinyl composition tile (VCT) and luxury vinyl tile (LVT)
• Eliminating air pockets and trapped air under resilient flooring
• Securing adhesive bond lines during floor laying operations

Specifications

• Roller Weight: 34 kg (75 lbs)
• Roller Width: 406 mm (16 inches)
• Roller Diameter: 127 mm (5 inches)
• Number of Segments: 3
• Overall Handle Length: 1,067 mm
• Roller Material: Cast Iron (Zinc-Plated)
• Operation Type: Manual

Transport Requirements

• Suitable for transport in a ute, van or small trailer.

Recommended PPE

• Steel-capped boots
• Gloves
