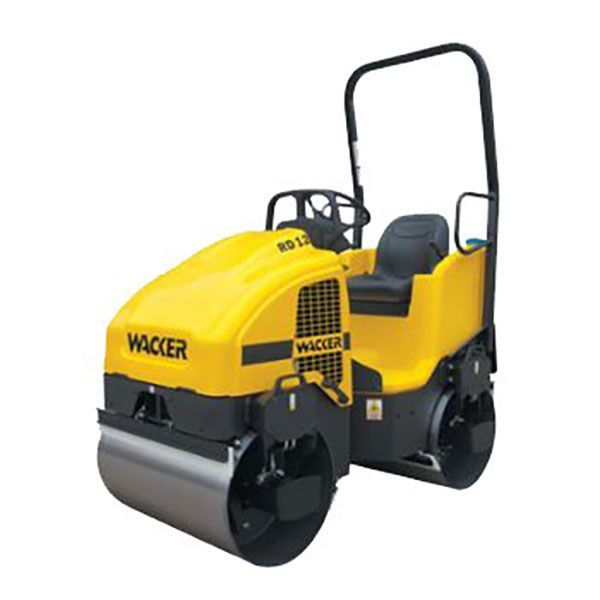

Wacker 1.1T Double Drum Roller
Wacker Neuson's RD 12 one ton roller series features dual drum drive and articulated steering for extremely accurate control. Front drum vibration with static rear drum leaves a quality asphalt finish. Outstanding overall roller performance and a high exciter frequency allows compaction at faster speeds while still delivering even coverage and excellent results.
FEATURES:
- Pressurized water system offers consistent water flow. An eight-position timer allows operator to adjust water flow and match conditions.
- Overall machine design eliminates overhang of unit. Easily manueverable units provide flush, right up to the edge asphalt compaction.
- Rear platform and front hood tilt up for easy access and improved machine serviceability.
- Rollers offer reduced sound levels; units run quieter than competitive machines in same class.
- Ideally suited for compaction of level sublayers and finish layers on road repairs, driveways, parking lots and and any asphalt surface
| SPECIFICATIONS: | ||
| Description | Metric | Imperial |
| Overall Size (lxwxh) | 1824x1035x2300mm | 71.8x40.8x90.6in |
| Dry Weight | 985kg | 2171lb |
| Operating weight (includes 175lb operator, half-full water tank and half-full fuel tank) | 1130kg | 2491lb |
| Weight w/ballast in rear drum | 1220kg | 2689lb |
| Shipping weight (including packaging) | 1012kg | 2230lb |
| Shipping size | 2026x1083x1472 | 79.8x42.6x58in |
| Engine Type | air-cooled, 4-cycle 2 cylinder, Honda Gasoline | |
| Displacement | 688 cm3 | 42 in3 |
| Max. Rated Power at Rated Speed | 15.1kW at 3600rpm | 20.3HP at 3600rpm |
| Power Rating Specification | SAE J1349 | SAE J1349 |
| Starting System | Electric | Electric |
| Electrical System | 12V | 12V |
| Fuel Consumption | 6 l/h | 1.59 US gal/h |
| Fuel tank capacity | 23 l | 6.1 US gal |
| Water tank capacity | 100 l | 26.4 US gal |
| Number of vibrating drums | 1 | |
| Drum diameter | 560mm | 22in |
| Drum width | 900mm | 35.4in |
| Frequency | 70Hz | 4200vpm |
| Dynamic (centrifugal) force per drum | 12kN | 3400ibf |
| Dynamic linear force, front | 16.8N/mm | 96lb/in |
| Forward/reverse speed (infinitely variable) | 0-8.7km/h | 0-5.4mph |
| Max. area capacity | 7830 m2/h | 84281 ft2/h |
| Maximum gradeability | 30% | 30% |
| Outside turning radius | 2.4m | 8ft |
| Side clearance (R/L) | 44/89mm | 1.9/3.5in |
| Curb clearance (R/L) | 399/208mm | 15.7/8.2in |
